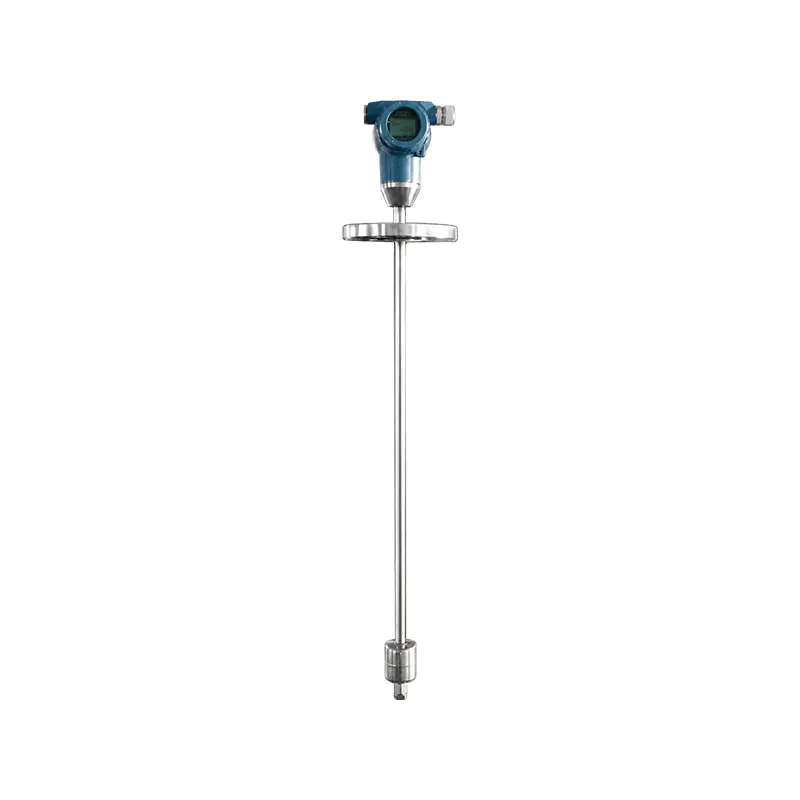

UZ-CZ type magnetostrictive liquid level gauge

UZ-CZ magnetostrictive level gauge. The magnetostrictive level gauge is a unique and highly accurate magnetic sensor that can perform continuous liquid level and interface measurement and provide analog signal output for monitoring and control. It has an induction resolution that is more than 10 times higher than traditional reed transmitters. The basic structure includes electronic conversion components equipped with signal processing and induction electronic components installed in stainless steel tubes. The magnetostrictive level gauge can be installed as a whole on the top of the tank or installed on its upper part through the tank side outlet pipe. The sensing electronic component can measure the position of the magnetic float rising or falling due to changes in the liquid level, and the electronic conversion component is processed by the microprocessor into a two-wire analog signal output. Because the housing containing electronic components is installed at the end of the sensor tube and has a special assembly structure, it can be applied at high temperatures. The standard two-wire 4- 20 mA output signal makes it easy for users to calibrate the actual measurement range of the liquid level on site through the three buttons on the instrument. The intelligent transmitter is designed to be easy to use and calibrate, and can also be used in conjunction with the UZ type magnetic liquid level gauge.

Product Features:
1. Suitable for continuous measurement of tank level or interface;
2. Adopts the most advanced magnetostrictive principle;
3. The measurement accuracy is extremely high, with an error of only 0.01% of the full range and a maximum error of no more than 1.27mm;
4. Can work under high temperature and high pressure. The maximum temperature can be selected up to 250 ° C, and the maximum pressure can be selected up to 10MPa;
5. It has intrinsic safety and explosion-proof performance, suitable for use in flammable and explosive places;
6. Output standard 4-20mA signal with HART protocol communication;
7. Has a selectable temperature signal output function
8. Installed on the top or side of the tank, the integrated installation method is extremely convenient and simple, and it is easy to calibrate on site;

Application industry;
1. Petrochemical industry
Crude oil and refined oil storage tanks, reaction vessels, distillation towers, oil-water boundary measurement; Explosion-proof type is used for flammable and explosive media, capable of measuring liquid level and oil-water interface, tank area measurement, and oil refining unit liquid level monitoring.
2. Chemical industry
Acid-alkali, organic solvent, corrosive liquid storage tanks, batching tanks; Select 316L and PTFE anti-corrosion probes for precise control of process liquid level, preventing tank overflow and drying, and connect to the DCS system.
3. Water treatment/environmental protection industry
Sewage tank, sedimentation tank, desalination water tank, chemical storage tank; Sewage treatment plants, chemical water workshops in power plants; monitor the levels of sewage, chemicals, and clean water, and adapt to the working conditions of corrosive sewage chemicals.
4. Food and pharmaceutical industry
Ingredient tank, storage tank, pharmaceutical reaction tank; Made of sanitary-grade 316L material, meeting GMP cleanliness requirements, used for high-precision liquid level measurement in beverage, dairy, and pharmaceutical storage tanks, with no risk of medium contamination.
