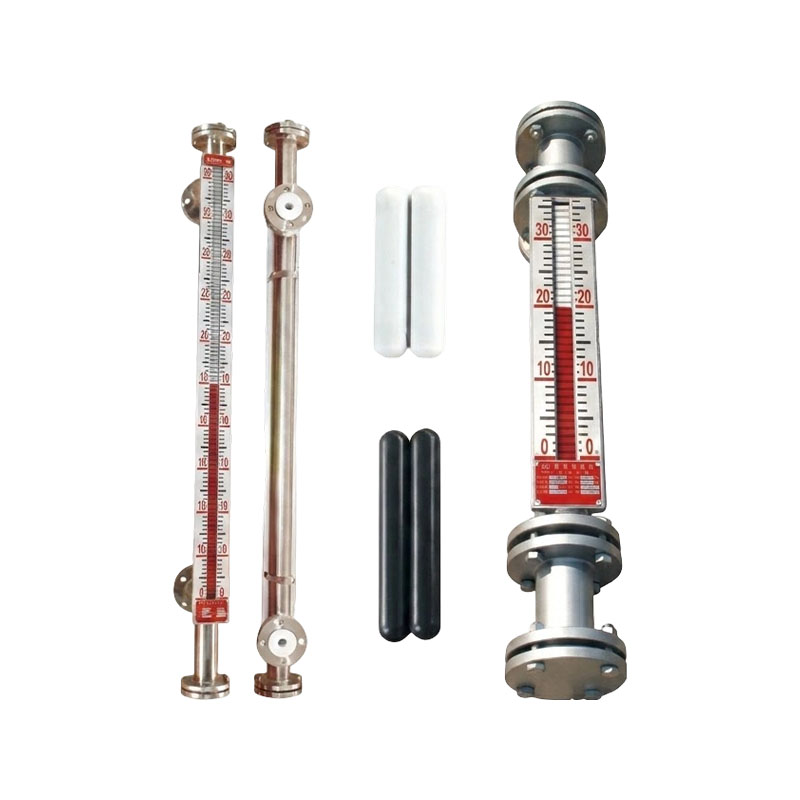

UZC-A03F anti-corrosion magnetic level gauge

The UZC-A03F series products are suitable for measuring the liquid level of various anti-corrosion storage tanks in industrial production. It is particularly suitable for acidic and alkaline solutions with low working temperature and pressure. The liquid-receiving part of the level gauge is made of PP or PVC material, or stainless steel lined with PP, PTFE, and other materials. Used in conjunction with the XG/UQZ-08 bundled remote transmitter, it outputs a 4- 20 mA remote transmission signal and can be equipped with upper and lower limit liquid level alarm switches to achieve upper and lower limit liquid level alarm and control, remote detection, indication, and control.

Product Features:
1. Adaptation to Strong Corrosive Media: Measuring tube and, float liners/coatings are made of anti-corrosion materials such as PTFE and polytetrafluoroethylene, resistant to strong acids, alkalis, and salts to prevent media corrosion of the body.
2. Magnetic coupling non-contact sensing: The float floats in the anti-corrosion chamber with the liquid level, and the external magnetic flap and transmitter sense magnetic signals. The external electrical components do not come into contact with corrosive media.
3. Integrated on-site visualization and remote transmission: The magnetic flip plate allows for intuitive observation of the liquid level height on site, with optional 4-20mA remote transmission output and liquid level switch alarm, enabling on-site viewing and remote monitoring by the central control.
4. Good sealing and low failure rate: fully enclosed structure with no exposed transmission components; The anti-corrosion isolation layer is complete, the medium will not leak out, reducing corrosion damage, and the maintenance workload is small.

Application industry:
1. Chemical industry: monitoring of liquid levels in acid and alkali storage tanks, reaction vessels, neutralization tanks, and various corrosive chemical raw material tanks.
2. Environmental protection sewage treatment industry: liquid level measurement of sewage chemical tanks, acid-base dosing tanks, wastewater regulating tanks, and electroplating waste liquid storage tanks.
3. Pharmaceutical industry: Level monitoring of corrosive liquid storage tanks, ingredient tanks, and various acid-base process storage tanks.
4. Metallurgical surface treatment industry: Level detection of acid pickling tanks, electroplating tanks, and corrosive salt storage tanks.

Contact Us
PREV：UZC-A02F High Temperature and High Pressure Magnetic Level GaugeNEXT：UZC-A04F Liquid Gas Magnetic Level Gauge
FAQ Performance Specifications

Q1: What medium cannot be used for anti-corrosion magnetic level gauges?
Answer: PTFE anti-corrosion cannot be used for high-temperature molten alkali metals, chlorine trifluoride, and other highly corrosive special media. When placing an order, it is necessary to provide the composition, concentration, and temperature of the medium and confirm the compatibility of the material.

Q2: What is the reason for the anti-corrosion level gauge not flipping over?
Answer: ① The float is stuck due to impurities; ② Inner lining deformation, bulging, stuck float; ③ Demagnetization of magnetic steel. It is necessary to check for impurities in the medium, and it is strictly prohibited to strike the liquid level gauge body.

Q3: What is the maximum temperature and pressure resistance of the anti-corrosion magnetic level gauge?
Answer: Due to the limitation of PTFE lining, the general operating temperature is -20~120 ℃, and the pressure varies depending on the specifications; high-temperature and high-pressure corrosion conditions require prior confirmation and customization with the manufacturer.

Q4: What are the precautions for installation and use?
Answer: It must be installed vertically; Do not scratch the lining with hard objects; Slowly open and close the inlet and outlet medium valves to avoid pressure shock and damage to the anti-corrosion coating; It is recommended to install a filter at the front end if the medium contains a large amount of solid impurities.

Measuring Range: 300–6000 mm
Measuring Accuracy: ±10 mm
Chamber Material: PP, PVC, or stainless steel lined with PTFE
Operating Pressure: ≤1.0 MPa
Temperature Range: -20°C–150°C
Specific Gravity of Medium: ≥0.45 g/cm³
Density Difference of Medium: ≥0.15 g/cm³
Medium viscosity: ≤0.02 Pa·s
Output signal: 4–20 mA DC (600Q negative polarity)
Connection flanges: DN20, DN25, etc.; flange standard: HG/T 20592-2009

XG/UZC-A03F Corrosion Protection
L Drain Valve
□ Upper / Lower Limit Level Switches
Y XG/UQZ-08 Two-Wire Transmitter
D Semi-detonating Type
I Ben Aung Type
□ With Isolated Safety Barrier
E XMT Bar-Graph Digital Indicator — (1) Horizontal / (2) Vertical
—□ Measuring Range
—□ Medium Density
—□ Working Pressure
