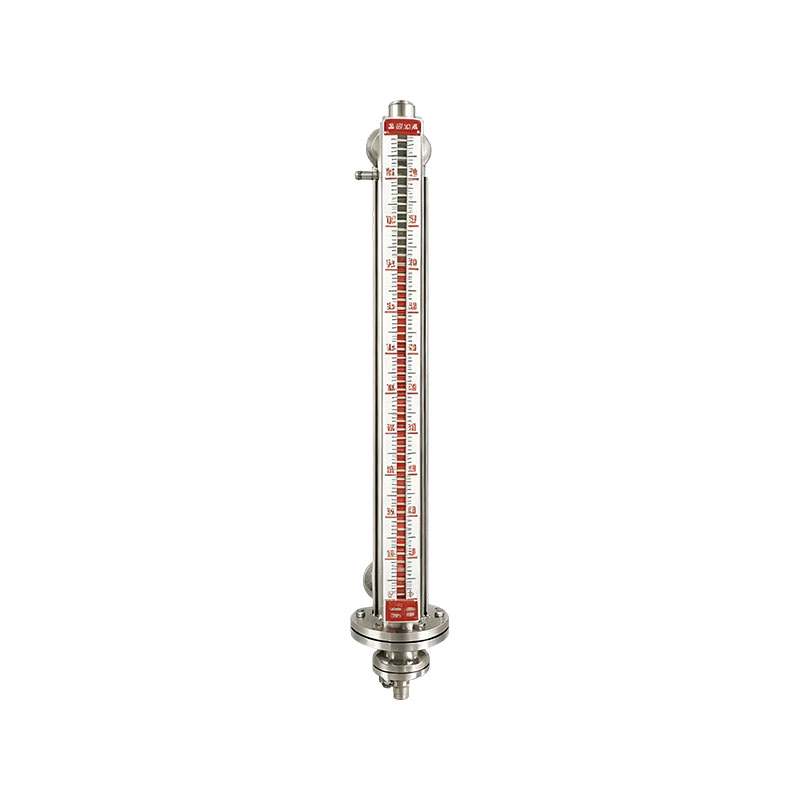

UZC-BF jacketed magnetic level gauge

XG/UZC-BF series jacketed magnetic level gauge is a novel on-site liquid level detection and insulation instrument. It uses a jacket to ensure that the liquid level measurement always works at a certain temperature, providing reliable assurance for measuring liquid media that are prone to solidification and have poor fluidity at lower temperatures. The insulation jacket serves as insulation and can also be used to measure liquid levels in chemical plants that require antifreeze, insulation, and heating. The jacket forms include steam, circulating water, and vacuum jacket. Used in conjunction with the XG/UQZ-08 bundled remote transmitter, it outputs a 4-20mA remote signal and can be equipped with upper and lower limit liquid level alarm switches to achieve upper and lower limit liquid level alarm and control, as well as remote detection, indication, and control.

Product Features:
1. Insulation and heat tracing to prevent crystallization and solidification: The external jacket cavity can be filled with steam, hot water, and thermal oil to maintain the temperature of the measuring tube, avoid medium crystallization, solidification, and wall hanging, and ensure normal measurement of the liquid level of easily solidified media.
2. Local visibility, optional remote output: Red and white flip column on-site intuitive reading, no power supply required; It can be equipped with a liquid level transmitter to output 4-20mA signals, and can be connected to DCS/PLC for remote monitoring. It can also be equipped with a switch to achieve upper and lower limit alarm interlocking.
3. Safe and reliable sealing, strong adaptability to working conditions: magnetic coupling non-contact transmission, complete isolation between the indicator and the measured medium, high sealing and leakage prevention, adaptable to high-pressure, corrosive, and toxic medium working conditions, explosion-proof optional.
4. Sturdy structure with minimal maintenance: The entire machine has a simple mechanical structure, no vulnerable transmission components, and easy installation; The liquid receiving material can be selected from 304/316L, which is resistant to medium corrosion, stable in long-term operation, and requires minimal daily maintenance.

Application industry:
1. Petrochemical industry
Used for storage tanks and reaction vessels of easily solidified media such as asphalt, resin, and heavy oil, with steam jacket insulation to prevent medium condensation and crystallization, and achieve liquid level monitoring inside the tank.
2. Fine Chemicals/Pharmaceutical Chemicals
Various types of molten materials, saturated salt solutions, and easily crystallizable chemical material tanks are equipped with jacket insulation to prevent medium solidification and blockage, and are suitable for measuring the liquid level of corrosive and toxic media.
3. Coal chemical industry
Coal tar, crude phenol, and molten material storage tanks and towers are prone to solidification when the medium temperature decreases. They rely on jacket heat tracing to ensure the normal operation of the liquid level gauge.
4. Oil and Food Processing
Palm oil, animal fat, honey and other low-temperature and easily solidified materials are insulated with a hot water jacket to prevent material condensation, and the liquid level of the storage tank is monitored.
