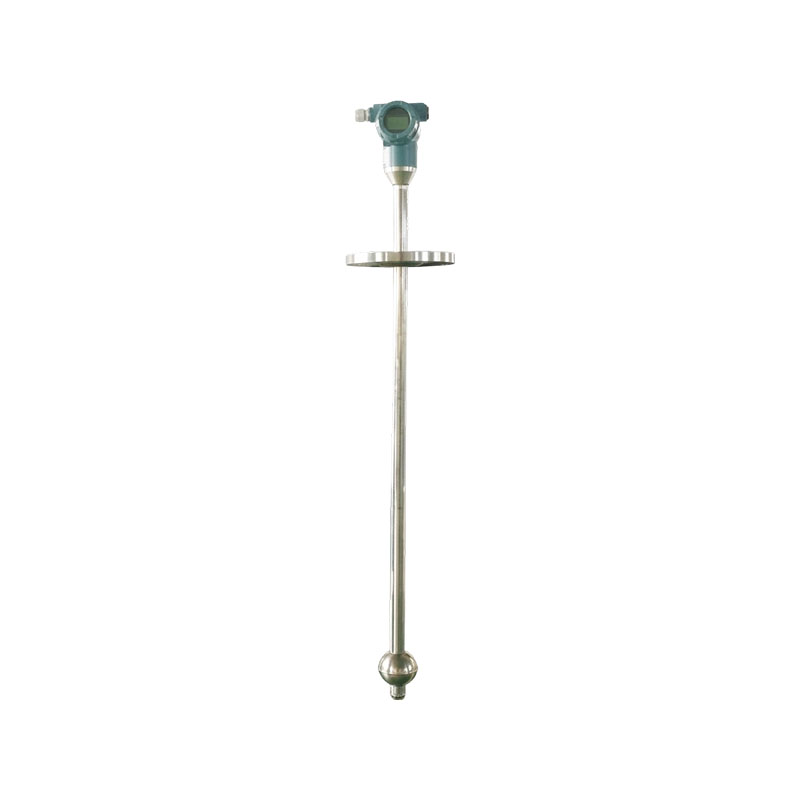

UQZ series magnetic levitation ball level gauge

UQZ series magnetic levitation ball level gauge is carefully designed by drawing on domestic and foreign products, actively absorbing and blending the advantages of many similar products, and boldly improving the original product structure through the company's technical personnel. By using high-quality magnets and imported electronic components, the product has the advantages of simple structure, convenient use, stable performance, long service life, and easy installation and protection. The magnetic levitation ball level gauge applies to liquid level measurement and control in various industrial automation processes. It can be widely used for liquid level measurement, control, and monitoring in fields such as petroleum processing, food processing, water treatment, pharmaceuticals, electricity, papermaking, metallurgy, ships, and steel furnaces.

Product Features:
1. Simple and reliable structure: No complex electronic components, mainly composed of floating balls, magnets, guide rods, and switch components, resistant to vibration, long service life, and low maintenance.
2. Multiple signal outputs are available: switch alarm output can be configured, and 4a 4- 20 mA analog remote transmission signal can also be carried, making it easy to connect to PLC and DCS control systems.
3. Suitable for various media working conditions: The main body can be made of 304/316L stainless steel, PP, PVC anti-corrosion materials, and can measure water, oil, acid, and alkali corrosive liquids.
4. Flexible installation form: Supports top and side installation, suitable for storage tanks and boxes, easy to install and debug, no need to open the cover for calibration.
5. Explosion-proof: With explosion-proof specifications, it can be used in flammable and explosive working conditions, meeting the safety requirements of chemical tank areas.

Application industry:
1. Petrochemical industry: Various types of oil storage tanks and intermediate storage tanks, achieving high and low liquid level alarms and on-site liquid level monitoring.
2. Water treatment environmental protection: sewage tank, dosing tank, clean water tank, control of water pump start/stop, monitoring of chemical liquid level.
3. Power industry: Level monitoring and interlocking alarm for power plant fuel tanks, desalinated water tanks, and acid-base medicine tanks.
4. General industrial equipment: mechanical equipment oil tanks, hydraulic stations, water supply and drainage equipment, and matching tank level detection.

Contact Us
PREV：UQZ-08 Remote TransmitterNEXT：UZ-CZ type magnetostrictive liquid level gauge
FAQ Performance Specifications

Q1: Can the magnetic levitation ball level gauge measure viscous media?
A: Not suitable for high-viscosity and easily scaling media. Viscous materials are prone to adhere to the floating balls, causing them to jam and resulting in measurement failure. Under working conditions where the medium viscosity is low and it is not easy to stick to the wall can be used normally.

Q2: Will the magnetic levitation ball level gauge demagnetize? What is the approximate lifespan?
A: Under normal working conditions, magnetic steel is not easily demagnetized; If exposed to ultra-high temperatures for a long time, it will accelerate magnetic decay. Under non-corrosive and non-impact working conditions, the equipment can have a service life of several years. It is recommended to regularly check the activity status of the floating ball.

Q3: What are the output signals of the magnetic levitation ball level gauge?
A: There are mainly two types: switch output is used for high and low liquid level alarm interlocking; 4-20mA analog output, capable of remote continuous transmission of liquid level signals, connected to a PLC/DCS system.

Q4: What are the precautions for installing a magnetic levitation ball level gauge?
A: Avoid interference with the movement of the floating ball by the mixing blades inside the pipeline and tank; The pressure and temperature of the medium cannot exceed the rated parameters of the instrument; the side-mounted version should ensure that the installation flange is level and the floating ball moves up and down unobstructed.

Ambient Temperature: -20–80°C:
Relative Humidity: 5%–100% (including direct moisture)
Ambient Pressure: 86 kPa–108 kPa
Operating Pressure (MPa): <2.5 MPa
Insertion Depth (mm): 200–6000
Measuring Range (mm): 500–6000 mm;
Remote Transmission Type: 24 VDC power supply, 4–20 mA output
Measurement Accuracy: L = 500–1000 mm < ±1.5%, L > 1000 mm < ±1.0%
Dead Zone: 66–120 mm (with water as the medium):
Medium Temperature: -20–125 °C:
Medium Viscosity: < 0.05 Pa·s;
Medium density: 0.35–0.5 g/cm³, 0.5–0.75 g/cm³, 0.75–1.5 g/cm³
Explosion-proof rating: ibIICT5
Enclosure protection rating: IP65, IP68

Magnetic Float Level Gauge Selection Table

XG/UQZ Magnetostrictive Level Transmitter
Gauge Type 1 Local Level Indicator
2 Remote-Transmission Type
Guide Tube & Float Material P Stainless Steel (304, 321, 316L)
F Fluoroplastic Lined
S PVC
Flange Material G Carbon Steel
P Stainless Steel (304, 321, 316L)
S PVC
Actual Working Pressure A 0.6 MPa (HG/T 20592–2009)
B 1.0 MPa (HG/T 20592–2009)
C 1.6 MPa (HG/T 20592–2009)
D 2.5 MPa (HG/T 20592–2009)
Flange Specification A DN80
B DN100
C DN125
D DN150
Medium Specific Gravity —XX
Ordering Length —XX
Explosion-Proof Requirement O Non-Explosion-Proof
B Intrinsically safe
