XG/JYZX series magnetic level gauge

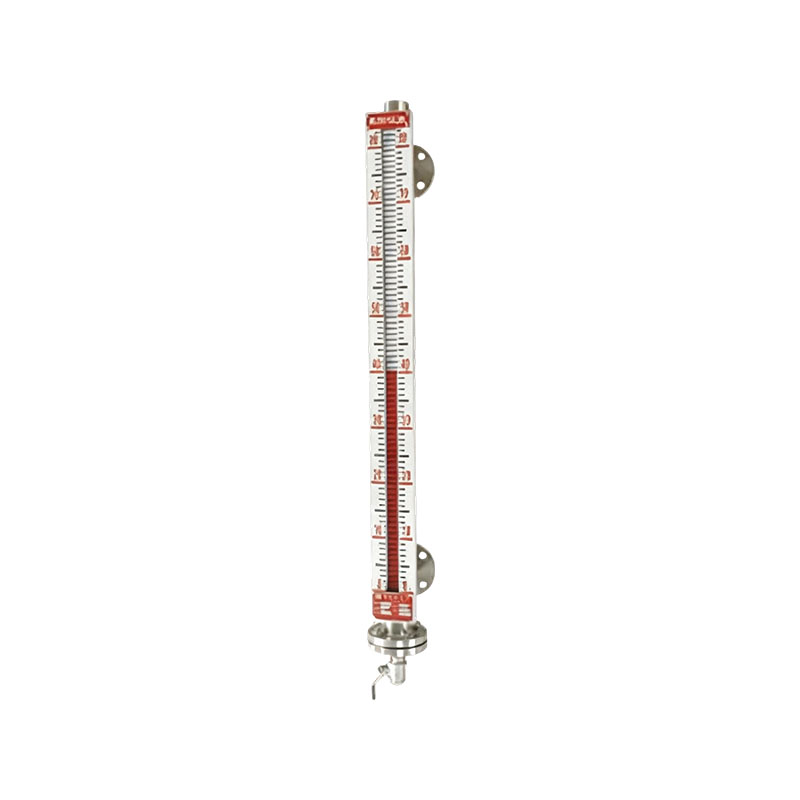

XG/JYZX series magnetic level gauge, also known as a magnetic flip column or magnetic flip plate. A magnetic float level gauge can safely and reliably measure liquid level under high temperature, high pressure, high viscosity, and strong corrosion conditions. The reading is intuitive, the display is eye-catching, and the measurement range is large. Equipped with micro switches and liquid level remote transmitters, it can achieve upper and lower limit alarms and control of liquid level (boundary), as well as remote detection and control. The magnetic liquid level gauge series products are widely used for liquid level measurement and control in various industries such as power, petroleum, chemical, metallurgy, environmental protection, medicine, food, etc. The XG/JYZX series magnetic float flip column level gauge is connected to the container through a side flange, so that the changes in the liquid in the level gauge are actually consistent with the changes in the liquid level inside the container. The cylindrical float inside the level gauge chamber and the magnetic flip plate and switch outside the level gauge are actually a set of magnetic systems. The cylindrical float affects the flip column inside the flip plate and the magnetic components inside the switch through a magnetic field, thereby linearly displaying the liquid level changes.
The flipping column of the magnetic flipping plate is equipped with small columnar magnetic steel, and all flipping columns are evenly placed in aluminum slots with a radial spacing of 10mm. Half of the flipping columns are white, and the other half are red. When the liquid level in the level gauge rises and falls, the float moves accordingly, and the beam magnetic field of the permanent magnet installed on its top drives the magnetic flip column of the outward-rotating plate to rotate 180 °. When the liquid level rises, it changes from white to red. Conversely, when the liquid level drops, the flipping column changes from red to white. This way, the flipping column can reflect the changes in the liquid level inside the container without the need for any power supply. It provides a safe and reliable means and method for liquid level detection of flammable, explosive, and toxic media by completely isolating liquid media from measurement indicators.
UQZ liquid level sensor is used to measure liquid level and transmit signals together with JYZK series magnetic float level gauges. The resistance signal corresponding to the liquid level is converted into a standard current signal output by the transmitter.
The UK series magnetic switch is divided into ordinary magnetic switches and bidirectional holding magnetic switches, and is used in conjunction with the XG/JJZK water series magnetic float level gauge.

Product Features:
1. The structure is simple, sturdy, and reliable, and does not require special maintenance.
2. The liquid medium and measurement indicator are completely isolated.
3. It can measure and indicate the liquid level of corrosive, flammable, toxic, agitated, and contaminated liquids, and is suitable for high-temperature and high-pressure environments.
4. Magnetic flip column display; no need for an external power supply. The measurement results can be transmitted remotely through the circuit, achieving remote control and detection.
5. In addition to the basic type, there are various forms of liquid level gauges such as high-temperature and low-pressure type, high-temperature and high-pressure type, jacket type, top-mounted type, anti-corrosion type, liquid-gas type, frost-proof type, etc.  Application industry:
1. Petrochemical industry: various storage tanks, reactors, buffer tanks, and towers used for monitoring liquid levels and boundary positions.
2. Water treatment and environmental protection: measurement of liquid levels in dosing tanks, sewage storage tanks, circulating water tanks, and purified water storage tanks.
3. Thermal and electrical power: monitoring of liquid levels in hot water tanks, deoxygenated water tanks, heat exchangers, and auxiliary equipment containers.
4. Light industry, food and pharmaceuticals: liquid level detection for ingredient tanks, fermentation tanks, cooking tanks, and raw material storage tanks.
