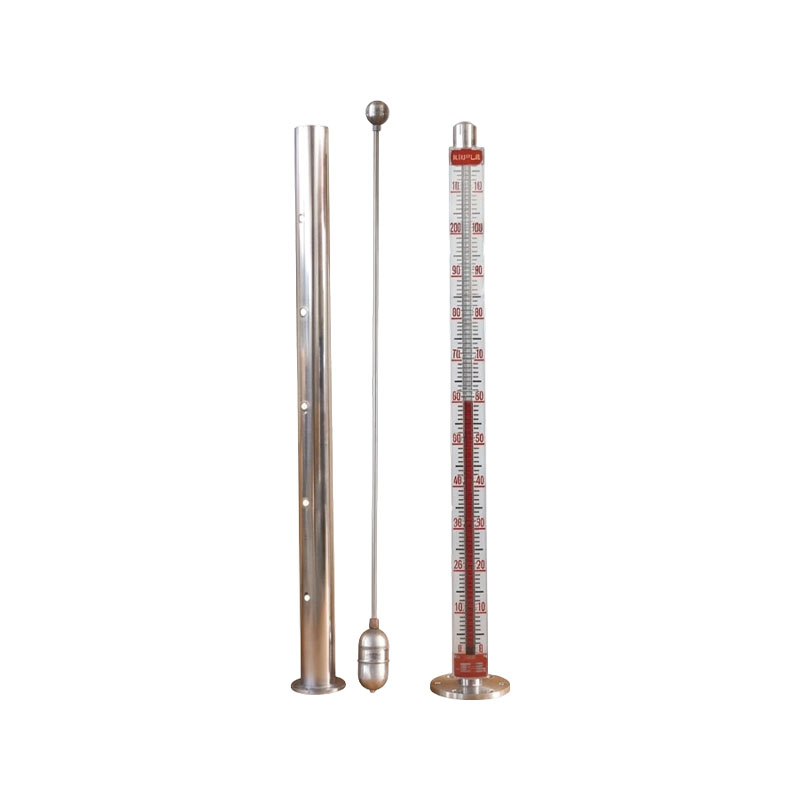

UZD-AF top mounted magnetic level gauge

The UZC-AF01 basic type magnetic level gauge series is a commonly used side-mounted magnetic level gauge with a wide range of applications. High quality and strong magnets are selected for the magnetic steel inside the floating ball. Can measure various liquid media, such as water, liquefied gas, liquid ammonia, liquid chlorine, propylene, acid, alkali, salt, etc.
The basic magnetic level gauge is suitable for measuring the liquid level of liquid media with a working pressure below 6.3 MPa and a working temperature below 180 ℃. The basic magnetic level gauge can be used in conjunction with the XG/UQZ-08 bundled remote transmitter, outputting a 4-20mA remote transmission signal. It can be equipped with upper and lower level alarm switches to achieve upper and lower limit level alarm and control, as well as remote detection, indication, and control.

Product Features:
1. Top-mounted vertical installation, suitable for special tanks: Adopting a top-insertion installation method, there is no need to open holes on the side of the tank body, which perfectly adapts to equipment such as high-pressure storage tanks, sealed reaction vessels, underground storage tanks, horizontal tanks, etc., whose side walls cannot be opened. The installation adaptability is extremely strong.
2. Fully sealed explosion-proof, high safety performance: The overall enclosed structure has no leakage points and can be adapted to flammable, explosive, toxic, and corrosive media. It supports explosion-proof grade design, eliminates the risk of media volatilization and leakage, and meets the standards of chemical explosion-proof working conditions.
3. Contactless measurement, durable and maintenance-free: It works based on the principle of magnetic coupling, with no mechanical transmission components inside, no wear or jamming, and is not affected by medium viscosity, crystallization, or slight impurities. It runs stably for a long time and has almost zero maintenance costs.
4. Signal integration and adaptation to automation control: It can be equipped with remote transmission transmitters and switch alarm devices to achieve local visibility of liquid level and remote signal transmission of+4-20mA. It supports high and low liquid level alarms, interlock control, and is compatible with factory automation control systems.

Application industry:
1. Petrochemical industry: monitoring of liquid levels in various oil storage tanks, chemical solvent tanks, reaction vessels, and distillation towers, suitable for flammable, explosive, and corrosive chemical media.
2. Pharmaceutical and fine chemical industry: sterile reaction tanks, ingredient tanks, and storage tanks, with a fully sealed structure without pollution, meeting the requirements of clean production conditions.
3. Electric power and thermal power industry: liquid level monitoring of equipment such as desalination water tanks, condensate water tanks, oil storage tanks, and dosing tanks, suitable for continuous and stable operation of power plants.
4. Environmental water treatment industry: liquid level detection for sewage storage tanks, chemical storage tanks, reclaimed water tanks, and acid-base storage tanks, suitable for various acid-base and wastewater media.
