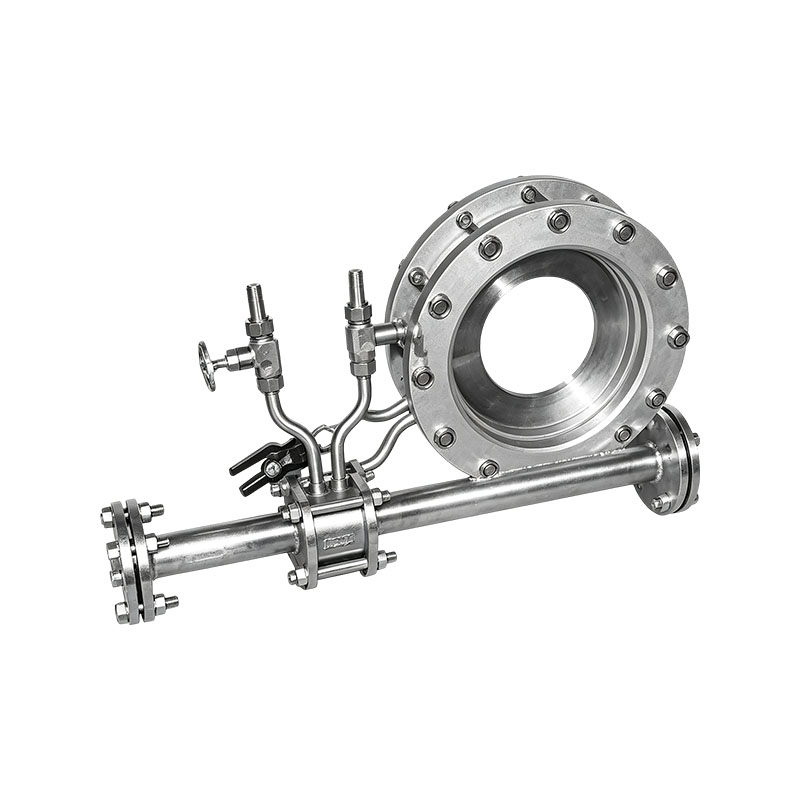

XG-LG Series Flow Measurement Throttling Device

The Orifice flow meters are differential pressure flow meters, representing the most historically established flow measurement devices in industrial production. They exhibit diverse types, mature technology, and extensive applications.

Product Features:
1. Simple structure, easy installation, reliable operation, low cost, and a certain degree of accuracy
Can meet the requirements of industrial production.
2. With a long history, rich and reliable experimental data, and standardized design and processing
The international standard for standard throttling devices (orifice plates, nozzles, and Venturi) is
ISO 5167, and it has been revised multiple times. As long as the throttling components are designed and processed according to the standards,
Real flow calibration is required to determine the range of uncertainty.
3. The standard orifice plate is suitable for a diameter of 50~3000mm, with a β of 0.2~0.75.
4. The standard nozzle is suitable for a diameter of 50~500mm, with a β of 0.2~0.8.
5. The long neck nozzle is suitable for a diameter of 50- 630 mm, with a β of 0.2-0.8.
6. Mechanical processing of a Venturi tube with a diameter of 50- 250 mm and a β value of 0.2-0.75.
7. Coarse welded iron plate with a Venturi tube diameter of 200- 1200 mm and a β value of 0.2-0.70.
8. The diameter of the rough-cast Venturi tube is 100- 800 mm, with a β value of 0.2-0.75.
9. The diameter of the Venturi nozzle is 65- 500 mm, with a β value of 0.316-0.775.
10. 1/4 round hole plate diameter ≤ 500mm, β is 0.245~0.6.
11. The diameter of the conical population orifice plate is ≤ 500mm, and β is 0.1~0.316.
12. The diameter of the double orifice plate is 40- 100 mm, and β is 0.2-0.75.
13. The diameter of the small hole plate is less than 50mm, and β is 0.2~0.75.
14. The diameter of the hidden small hole plate is ≤ 50mm, and β is 0.2~0.75.
15. The diameter of the high-pressure lens orifice plate is ≤ 250mm, and β is 0.2~0.75.
16. The wide edge orifice plate has a diameter of 50- 400 mm and a β of 0.2-0.75. 17. The diameter of the circular perforated plate is 50- 2000 mm, with a β value of 0.1-0.8.
18. Eccentric orifice plate with a diameter of 100- 1000 mm and a β of 0.46-0.84.
19. The end orifice plate (nozzle) has a diameter of 100- 1000 mm and a β of 0.46-0.84.
20. The pressure range of the above throttling device is 0~42MPa, and the temperature is determined by the material.
21. Concealed double Venturi tube, nominal diameter of circular section pipeline: DN=300mm~6000mm, width x height of rectangular section pipeline: WxH (mm)=300x300~6000x6000, and other geometric surface pipelines with the same nominal diameter DN and varying width and height. Nominal pressure: PN ≤ 2.5MPa, determined by working temperature and material; differential pressure value: (0~100) kPa, repeated measurement error (stability): ± 10Pa.
22. The wing wind measurement device is particularly suitable for measuring large-caliber airflow, with stable measurement, high sensitivity, pressure loss offset, and high accuracy.
23. The design of the wind measurement device includes a reverse blowing interface and a dust discharge device, which is beneficial for product maintenance and increases product output
Reliability.
24. Advanced and sophisticated processing and testing technology greatly improves product accuracy and stability.
25. Mature throttling components are integrated with advanced electronic technology to create an intelligent integrated flow measurement device with on-site flow display and multiple signal outputs (4-20mA, pulse, with HART protocol).
26. Low-power circuit design reduces energy consumption, increases system stability and reliability. The integrated system has a battery power supply and an external 24VDC selection, which is convenient for installation and use.

Main selling points:
1. Standardization is mature and does not require actual flow calibration: it complies with GB/T2624 and ISO5167 standards. Standard throttling components can be directly used for measurement after being processed according to specifications, supporting trade settlement and measurement traceability.
2. No moving parts, durable and stable: pure mechanical throttling components, no rotating/sensing elements, high temperature and high pressure resistance, reliable long-term operation, long service life, low basic maintenance.
3. Wide range of medium adaptation: It can measure gases, vapors, and liquids, support single-phase fluids, and some models can adapt to dirty media containing small amounts of impurities. The pipe diameter coverage is extensive.
4. Low overall cost, flexible matching: simple structure, economical cost, can be matched with any brand of differential pressure transmitter; Multiple types such as orifice plate, nozzle, Venturi, V-cone, etc. can be selected according to the working conditions.

Application industry:
1. Power industry: Power plant boiler steam, primary/secondary air, circulating water, natural gas energy metering and energy consumption accounting.
2. Petrochemical industry: process raw material liquid, high-pressure process gas, steam, refining pipeline flow monitoring, material ratio, trade handover measurement.
3. Metallurgical industry: flow detection of blast furnace gas, converter flue gas, cooling water, compressed air, furnace condition control, and energy statistics.
4. Heating/municipal energy: metering of steam, hot water, and natural gas pipelines in the heating network, charging for heating, and balancing of pipeline flow.
