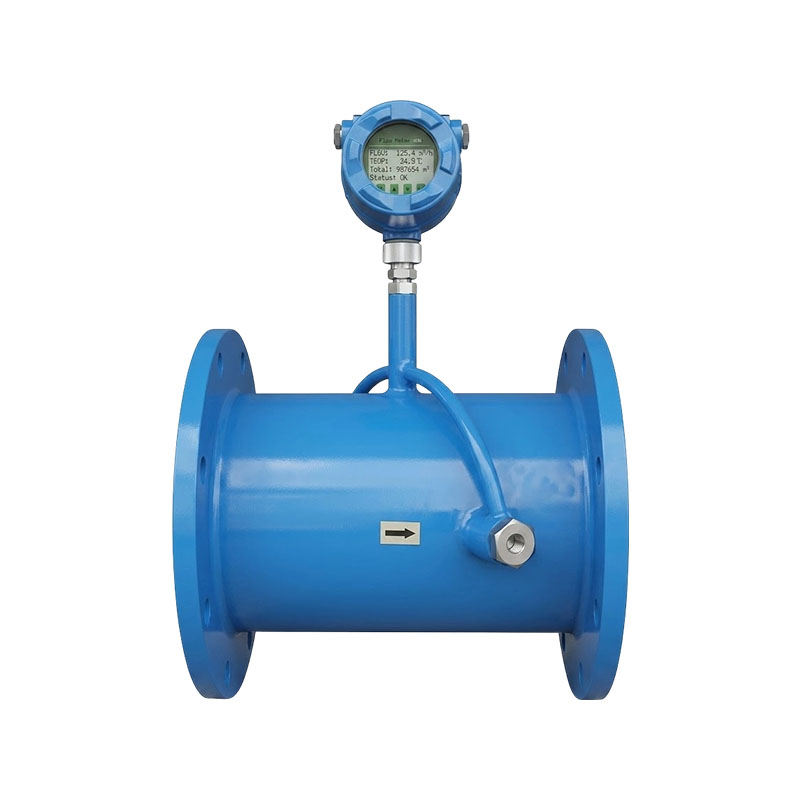

XG-CSL Intelligent Ultrasonic Flow Meter

The XG-CSL Intelligent Ultrasonic Flow Meter is an instrument that measures the flow rate of a full-pipe fluid based on the principle of ultrasonic time difference, using low voltage, multiple pulses, signal digital processing, and error correction technology. Widely used in industries such as tap water, environmental protection, power plant heating, metallurgy, mining, petroleum, chemical, food, medicine, papermaking, steel, etc.

Product Features:
1. Flow meters can be used for non-contact measurement without the need to cut off pipeline installation. They can also be used for mobile measurement. They are portable, easy to install, cost-effective, and do not affect normal production.
2. The flowmeter is used for non-flow obstruction measurement, without additional pressure loss, and can measure non-conductive liquids. It is a supplement to electromagnetic flowmeters.
3. Flow meters are suitable for large circular and rectangular pipelines and are not limited by pipe diameter. Their cost is basically independent of pipe diameter. And in many sites where real flow verification cannot be achieved, this flowmeter can be given priority consideration.
4. The flow velocity range can reach 0.1-12m/s (extended flow velocity of 0.1-30m/s).
5. Adopting advanced processing technology, visual menu interface operation, convenient use and operation, powerful measurement function, capable of bidirectional measurement, displaying flow and heat, and stable performance.
6. Diverse output signals: 4~20mA, frequency, 0~20VDC, etc.
7. Optimize circuit design, accelerate the response time of flow meters, and greatly improve accuracy.
8. Adopting advanced high-capacity data storage to ensure data storage and security.
9. Adopting special design and technology, it has strong anti-interference ability and is suitable for industrial environments. The portable flowmeter comes with an automatic rechargeable battery and can be used continuously for 8 hours.

Core selling points:
1. Non-contact measurement: The external clamp type does not require breaking the pipe opening, and the sensor can measure by clamping the outer wall of the pipeline without stopping production or installation, with no pressure loss.
2. Wide range of applicable pipe diameters: It can be adapted to pipes from small to large diameters, and the same instrument can be compatible with multiple pipe diameters, with low spare parts costs.
3. No fluid component wear: There are no moving parts such as impellers or floats inside the pipe, which will not be corroded or worn by the medium, and are not easy to block, with low maintenance.
4. Intelligent multifunctional output: Comes with flow accumulation and temperature monitoring, supports 4-20mA and RS485 communication, can remotely read data, and is easy to connect to the automatic control system.

Application industry:
1. Water supply and drainage: flow measurement and monitoring of tap water, reclaimed water, and sewage pipelines.
2. Petrochemical industry: Flow detection of various liquid process media and oil circulation pipelines.
3. Heating, Ventilation, and Air Conditioning (HVAC): Energy and flow accounting of central air conditioning cold and hot water, and thermal heating pipelines.
4. Metallurgical mines: Production circulating cooling water, process water, and large pipeline flow monitoring.
