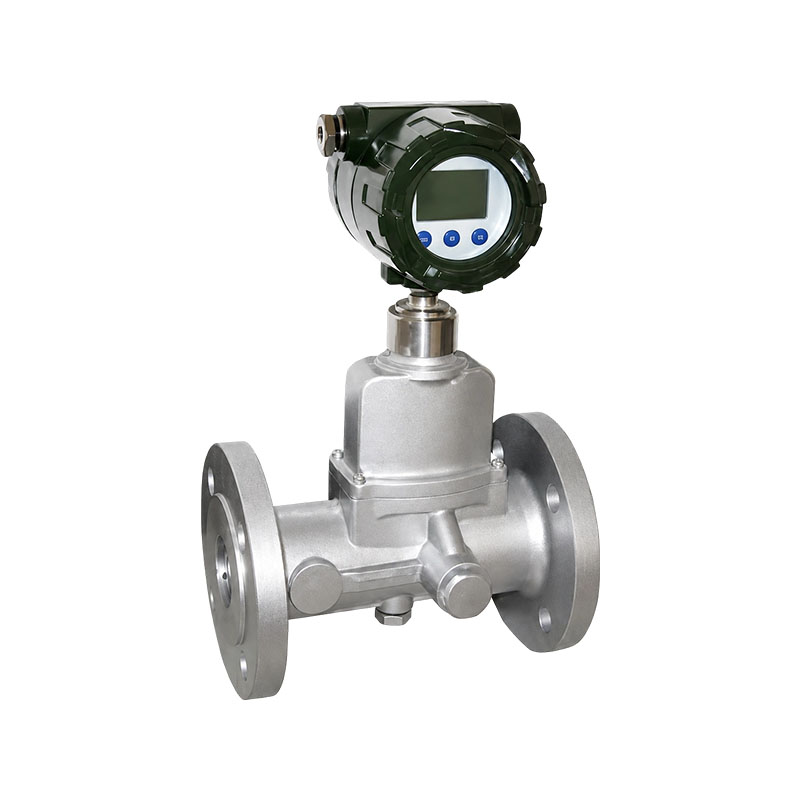

XG-LUX Intelligent Swirl Flow Meter

The XG-LUX Intelligent Swirl Flow Meter is a new type of gas flow measurement instrument developed and researched by our company to an advanced domestic level. It is an ideal instrument for gas measurement in industries such as petroleum, chemical, power, and metallurgy.

Product Selling Points:
1. No mechanical moving parts, not easily corroded, stable and reliable, long service life, long-term operation without special maintenance.
2. The shell is available in both stainless steel and aluminum alloy options.
3. Built-in pressure, temperature, and flow sensors; high safety performance; compact structure; and external appearance
beautiful; Can directly measure fluid pressure, temperature, and flow rate, and automatically track them in real time
Compensation and compression factor correction.
4. Adopting advanced computer processing chips, it has high integration, small size, good performance, and strong overall functionality. It adopts a circuit micro power consumption design, with low overall power consumption. It can be powered by an internal battery (3.6VDC) or an external power supply (24VDC).
5. The use of unique signal filtering technology, dual detection technology, and circuit processing technology can effectively improve the strength of detection signals and suppress pipeline vibration and interference
Interference signals caused by pressure fluctuations.
6. Adopting a multi-level password protection function to effectively prevent parameter modification.
7. Adopting a large-screen LCD, it can directly display the volumetric flow rate under working conditions, volumetric flow rate under standard conditions, total amount, as well as fluid pressure, temperature, and other parameters.
8. Adopting advanced data storage technology, it can store historical data for one year without losing data during power outages.
9. The converter can output frequency pulses, 4-20mA analog signals, and has an RS485 interface. It can be directly connected to a microcomputer and has a transmission distance of up to 1.2Km.
10. The accuracy level of the flowmeter is 1.0% F. S. and 1.5% F.S.
11. The flowmeter head can rotate 360 degrees, making installation and use simple and convenient.
12. Measure the mouth diameter;  DN20, DN25 ， DN32,  DN50， DN80 ， DN100、DN150、 DN200。

Product advantages:
1. Durable and sturdy, requiring minimal repair
There are no rotating parts inside, which will not wear out or get stuck. They are not easy to break after a long time of use, and there is basically no need to worry about maintenance after installation.
2. Accurate measurement, capable of measuring both large and small flow rates
It can measure both large and small traffic with high accuracy, and is not afraid of on-site vibration interference. The measurement results are reliable.
3. Comes with a "small computer" for easy use
It can automatically correct the effects of temperature and pressure, display flow directly, and can also be connected to remote meter reading, computer systems, and even be used with batteries, without the need to pull power.

Major applications:
1. Gas metering: Used to calculate how much natural gas is consumed in places such as homes, factories, and pipeline stations.
2. Industrial gas metering: Compressed air, nitrogen, steam, etc. in factories are used to monitor gas consumption and costs.
3. Measurement of low-viscosity liquids: Used for precise flow measurement in pipeline transportation of oil products, water, chemical liquids, etc.
