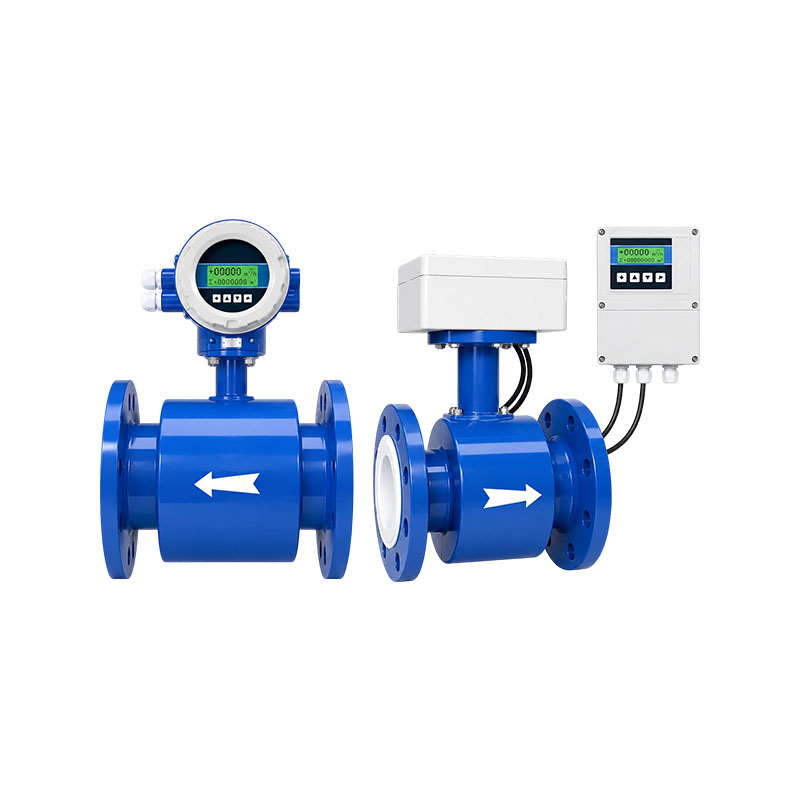

XG-LDE Intelligent Electromagnetic Flow Meter

The XG-LDE intelligent electromagnetic flowmeter is a fluid measurement instrument developed, researched, and produced by our company using advanced technology. It has the characteristics of high precision, high reliability, and long service life. To ensure product quality, our company meticulously studies and controls every aspect of the product structure, material selection, process development, production assembly, and factory testing, and provides a complete flow calibration and detection system. In order to meet the needs of measurement sites, high-pressure electromagnetic flowmeter systems and plug-in electromagnetic flowmeter systems have been developed. Especially, plug-in electromagnetic flowmeters have good economy, timeliness, and stability when applied in large-diameter pipeline systems. The online installation type allows for non-stop installation and maintenance, making it easy to use. Our electromagnetic flowmeter system is suitable for various fields such as petroleum, chemical, energy, metallurgy, food, environmental protection, and water conservancy.

Product Features:
1. The electromagnetic flowmeter has no blocking components inside, and there is almost no pressure loss or fluid blockage.
2. No mechanical inertia, fast response, wide flow measurement range (flow velocity 0.3~12m/s), good stability, can be used for automatic detection, adjustment, and program control systems.
3. Measuring liquids with a conductivity greater than 5uS/cm, the measurement is not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity. The sensor's induced voltage signal is linearly related to the average flow rate, and the measurement accuracy is high.
4. Accuracy levels: 0.2, 0.5, 1.0, 1.5. Meet the needs of different users.
5. The sensor part only has the inner lining and electrodes in contact with the measured liquid. As long as suitable electrode and inner lining materials are selected, it can be corrosion-resistant and wear-resistant.
6. Electromagnetic flow scoring includes conventional type (pressure less than 4.0MPa) and high-pressure type (pressure greater than 4.0MPa).
7. The plug-in electromagnetic flowmeter system is divided into simple installation type and online installation type.
8. Using EEPROM memory, the storage of measurement and operation data ensures safety and reliability.
9. Adopting an internationally advanced microcontroller (MCU) and surface-mount technology (SMT), it has reliable performance, high accuracy, low power consumption, zero-point stability, a Chinese menu, and convenient parameter setting.
10. Equipped with 4-20mA, frequency and pulse output, alarm level output, RS485 communication interface, HART, and Modbus protocols.
11. The thermal energy dedicated electromagnetic flowmeter system integrates thermal energy system components and calculations, serving as both a flow meter and a thermal energy accumulation meter. It has powerful functions and is suitable for heating systems.
12. High-definition LCD backlight displays instantaneous flow, cumulative flow (∑+, ∑ -, ∑ D), flow rate, flow percentage, empty tube ratio, flow status (excitation, flow, empty tube), etc.
13. Protection level: Integrated structure IP65, split structure IP68.
14. Explosion-proof rating: Ex d I L BT4.

Core selling points:
1. No pressure loss and easy blockage: There are no flow-blocking moving parts inside the pipeline, with minimal pressure loss, suitable for media containing particles and mud, and less prone to blockage failure.
2. Stable and reliable measurement performance: The measurement is not affected by the temperature, pressure, viscosity, or density of the medium, and is only related to the flow rate. The measurement accuracy is high, and the long-term operation data is stable.
3. Strong corrosion resistance and flexible selection: Multiple lining and electrode materials are available, which can be adapted to various corrosive conductive liquids such as sewage, strong acids,s and alkalis.
4. Intelligent multifunctional output: Equipped with LCD, air traffic control detection, and fault self diagnosis; Supports 4-20mA, pulse   Modbus‑RS485， Convenient to interface with PLC/DCS control systems.

Application industry:
1. Environmental sewage treatment: municipal sewage, industrial wastewater discharge flow measurement, and sewage monitoring.
2. Chemical industry: Flow monitoring of corrosive chemical liquids such as acids, bases, and salts.
3. Metallurgical mining industry: Flow measurement of solid-liquid two-phase media in slurry and mud.
4. Paper industry: Flow control of process media such as pulp, black liquor, and white water.
