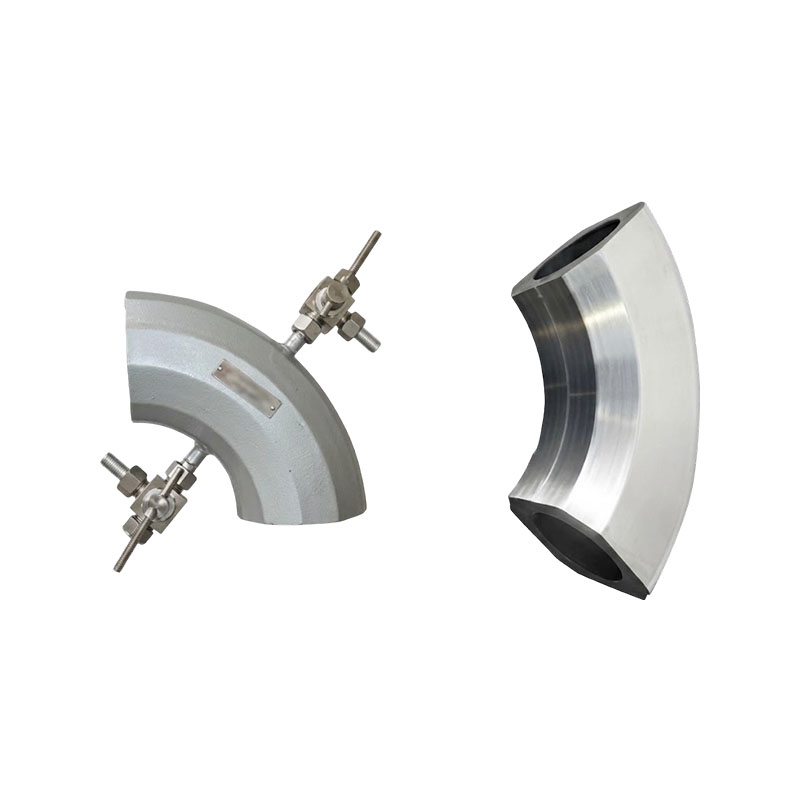

XG-WG bend tube flowmeter

The XG-WG series bend tube flowmeter is a new type of flow instrument developed by experts after decades of research. It can be widely used for flow measurement of liquids, gases, and steam in sectors such as electricity, heat, metallurgy, steel, petroleum, chemical, machinery, textiles, papermaking, pharmaceuticals, food processing, and public utilities.

Product Features:
1. The bend tube flowmeter can withstand high temperature and high pressure, and can work in various harsh environments such as humidity, dust, and vibration.
2. The sensor has no inserted components, no additional resistance loss, low energy consumption, and meets energy-saving and environmental protection requirements. The structure is simple, easy to install, and requires minimal maintenance, making it an ideal flow measurement instrument.
3. The measuring diameter is DN15~2000, and it can be installed at pipeline bends and straight pipes. The installation of straight pipe sections requires minimal requirements, with 5D in the front and 2D in the back.
4. The measurement range of flow velocity is wide, suitable for flow velocities of 0.3~12m/s (liquid medium) and 3~160m/s (gas and steam medium) inside pipelines.
5. The measurement accuracy can reach 0.5-1.5 levels, with a repeatability of 0.2%.
6. For the convenience of users, our company's bend tube flowmeter has integrated and split structures.
7. The intelligent integrated bend tube flowmeter adopts advanced circuit design, powerful functions, low power consumption, a large-screen LCD for flow information, and advanced internal memory to ensure data security.
8. The integrated bend tube flowmeter system can be powered by batteries and external 24VDC, output 4-20mA and pulse signals, and supports the HART protocol.

Main selling points:
1. No throttling element, not easy to block: Using the 90 ° bend of the pipeline itself as a detection component, there are no internal obstacles, especially suitable for dirty media such as particles, dust, and sewage, and there is almost no blockage problem.
2. Minimal pressure loss, energy-saving: relying on the centrifugal force of fluid turning to achieve measurement, almost no additional pressure loss is generated, and long-term operation reduces the energy consumption of pumps and fans, suitable for high-flow continuous production conditions.
3. Simple and reliable structure, long service life: no moving parts, no vulnerable parts, high temperature and high pressure resistance, wear resistance, extremely low maintenance, and can operate stably for a long time.
4. Easy installation and low renovation cost: directly utilizing the existing elbows on site, without the need for additional throttling bodies; only pressure components need to be installed, and the renovation work of old projects is small.

Application industry:
1. Thermal heating industry: Measurement of circulating water flow for urban heating steam, hot water, and boiler rooms.
2. Metallurgical industry: Flow monitoring of dirty media such as blast furnace cooling water, coal gas, slag flushing water, and dust removal wastewater.
3. Power industry: Measurement of circulating water, ash removal water, boiler feedwater, flue gas, and industrial water flow in power plants.
4. Water treatment industry: Process flow detection for industrial wastewater, reclaimed water, mud, and wastewater containing impurities.
