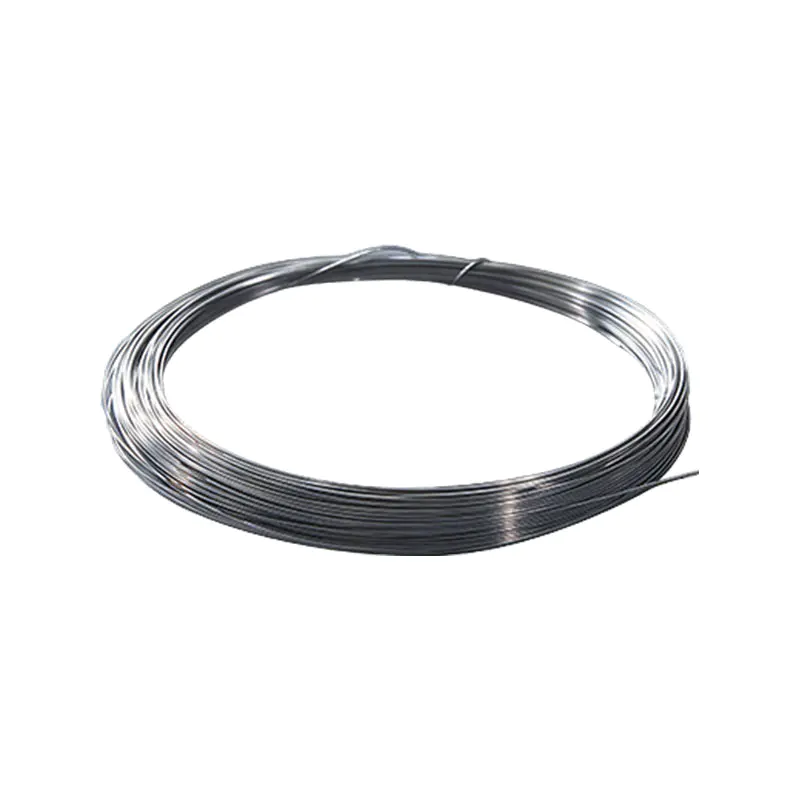

Platinum rhodium wire material (Type R)

Platinum rhodium wire is a binary alloy based on platinum containing rhodium, which is a continuous solid solution at high temperatures. Rhodium can enhance the thermoelectric potential and acid corrosion resistance of alloys compared with platinum. There are alloys such as PtRh5, PtRhl0, PtRhl3, PtRh30, and PtRh40. Alloys with Rh content greater than 20% are insoluble in aqua regia. Mainly used as thermocouple materials, PtRhl0/Pt, PtRh13/Pt, etc. are used as thermocouple wires in thermocouples to directly measure or control the temperature of fluids, vapors, gas media, and solid surfaces within the range of 0-1800 ℃ in various production processes.

Advantages:
Platinum-rhodium wire has the advantages of high accuracy, good stability, wide temperature measurement range, long service life, and high temperature measurement upper limit in the thermocouple series. Suitable for oxidizing and inert atmospheres, and can also be used in vacuum for a short period of time, but not suitable for reducing atmospheres or atmospheres containing metal or non-metal vapors.
Industrial thermocouples have platinum-rhodium wire models B, S, and R. Platinum-rhodium thermocouples, also known as high-temperature precious metal thermocouples, are divided into single platinum-rhodium (platinum rhodium 10 platinum rhodium) and double platinum-rhodium (platinum rhodium 30 platinum rhodium 6). They are used as temperature measurement sensors and are usually used in conjunction with temperature transmitters, regulators, and display instruments to form process control systems. They are used to directly measure or control the temperature of fluids, vapors, gas media, and solid surfaces within the range of 0-1800 ℃ in various production processes.

Application industries:
Almost all industrial fields, such as steel, power generation, petroleum, chemical, fiberglass, food, glass, pharmaceuticals, ceramics, non-ferrous metals, heat treatment, aerospace, powder metallurgy, carbon, coking, printing,g and dyeing.

Contact Us
PREV：Platinum rhodium wire material (Type S)NEXT：Platinum rhodium wire material (Type B)
FAQ Performance Specifications

Q1: What is the temperature measurement range of R-type platinum-rhodium wire, and is compensation wire required?
A: The long-term use temperature range is 0- 1450 °C, with a short-term maximum of 1600 ℃. The thermoelectric potential at room temperature cannot be ignored and must be matched with R-type dedicated compensation wires. Ordinary copper wires cannot be used; otherwise, significant measurement errors will occur.

Q2: What are the requirements for the usage atmosphere of R-type platinum rhodium wire?
A: Suitable for oxidizing and inert atmospheres; Not suitable for reducing and sulfur-containing gas environments, and should not be in direct contact with metal vapor, which can easily cause wire contamination and brittleness. It is recommended to use corundum protective sleeves for high-temperature use.

Q3: How to choose and distinguish between R-type and S-type platinum rhodium wires?
A: R-type has a higher platinum-rhodium content, better high-temperature strength than S-type, and better anti-pollution performance; The S-type thermoelectric potential is slightly lower. R-type is preferred for temperatures between 1300-1450 ℃; Below 1300 ℃, S-type can also meet the requirements and can be selected based on cost and operating conditions.

Thermocouple Wire Type Long-Term Operating Temperature Short-Term Operating Temperature
Platinum-Rhodium 13-Platinum R 0 – 1400 °C 0 – 1600 °C
